Step 9 — Telegram Bot Notifications

1. Scope

A Telegram bot informs the team about two categories of event: infrastructure health (nodes going down and coming back up) and threats or other events detected by the sensor node(s).

Component Technology Function
Bot Telegram Bot API, bot @Nodegroup8bot Delivers messages to the team chat
Trigger logic FastAPI (backend/api/main.py) Decides when to send, applies per-rule cooldowns
Rule state MongoDB alert_rules collection Persists which rules are enabled and their trigger counts
Message log MongoDB notifications collection Every message actually sent, surfaced on the frontend
Health polling asyncio background task in the FastAPI process Watches Prometheus up metric every 30s for state changes
POST /events
threat_level == "high"
monitor_node_health()
node up/down transition
↓
both call
↓
send_telegram_message()
checks rule enabled? → cooldown? → POST to Telegram API → log to Mongo
↓
Telegram chat
team notified
notifications collection
read by GET /notifications

Both trigger paths funnel through one shared send_telegram_message() function, so rule-checking, cooldown, and logging behavior is identical regardless of what triggered the alert.

2. Bot setup

  1. Created via @BotFather (/newbot) — bot username Nodegroup8bot.

  2. The bot token and the target chat ID are kept out of the repository entirely, in backend/.env (gitignored), and referenced by backend/docker-compose.yml:

    environment:
  - TELEGRAM_BOT_TOKEN=${TELEGRAM_BOT_TOKEN}
  - TELEGRAM_CHAT_ID=${TELEGRAM_CHAT_ID}

  3. The chat ID is not the recipient's phone number — Telegram's sendMessage API addresses a chat_id, not a phone number. It was obtained by having the recipient message the bot once, then reading it back via GET https://api.telegram.org/bot<token>/getUpdates.

  4. On FastAPI startup, a real getMe call against the Telegram API confirms the bot is reachable and sets a botStatus (online/offline/error) that the frontend displays — this is not a hardcoded "online" indicator.

3. Two real, independently-toggleable alert rules

Rather than a fixed list of hardcoded trigger conditions, rules live in MongoDB and are checked before every send:

Rule Condition Severity
threat_detection threat_level == "high" on an ingested detection event (fire, smoke, or weapon) critical
node_health A node's Prometheus up value flips 0→1 or 1→0 warning

Each rule tracks enabled, triggered_count, and last_triggered in Mongo, exposed via:

  • GET /notifications/rules — list rules with real counts
  • POST /notifications/rules/{id}/toggle — flip enabled, persisted immediately

send_telegram_message() checks is_rule_enabled(rule) before doing anything else — if a rule is toggled off from the frontend, that category of alert stops firing immediately, not just visually.

4. Spam prevention

The sensor camera can produce many detections in a short window (e.g. repeated misclassifications while pointed at a static object). Every send goes through a per-key cooldown (TELEGRAM_COOLDOWN_SECONDS = 60) keyed by sensor_id + detected class(es) for threats, or by node instance for down-alerts — so a misfiring sensor cannot flood the chat. "Back online" messages are intentionally not cooldown-gated, since a node recovering is a low-frequency, high-value event.

5. Message log surfaced on the frontend

Every message that actually reaches Telegram (HTTP 2xx from the Bot API) is written to a notifications collection — text, timestamp, severity, related node/sensor, and image URL if the triggering event had a snapshot. GET /notifications serves this to the Notifications page's "Telegram Feed" panel, which polls every 5s.

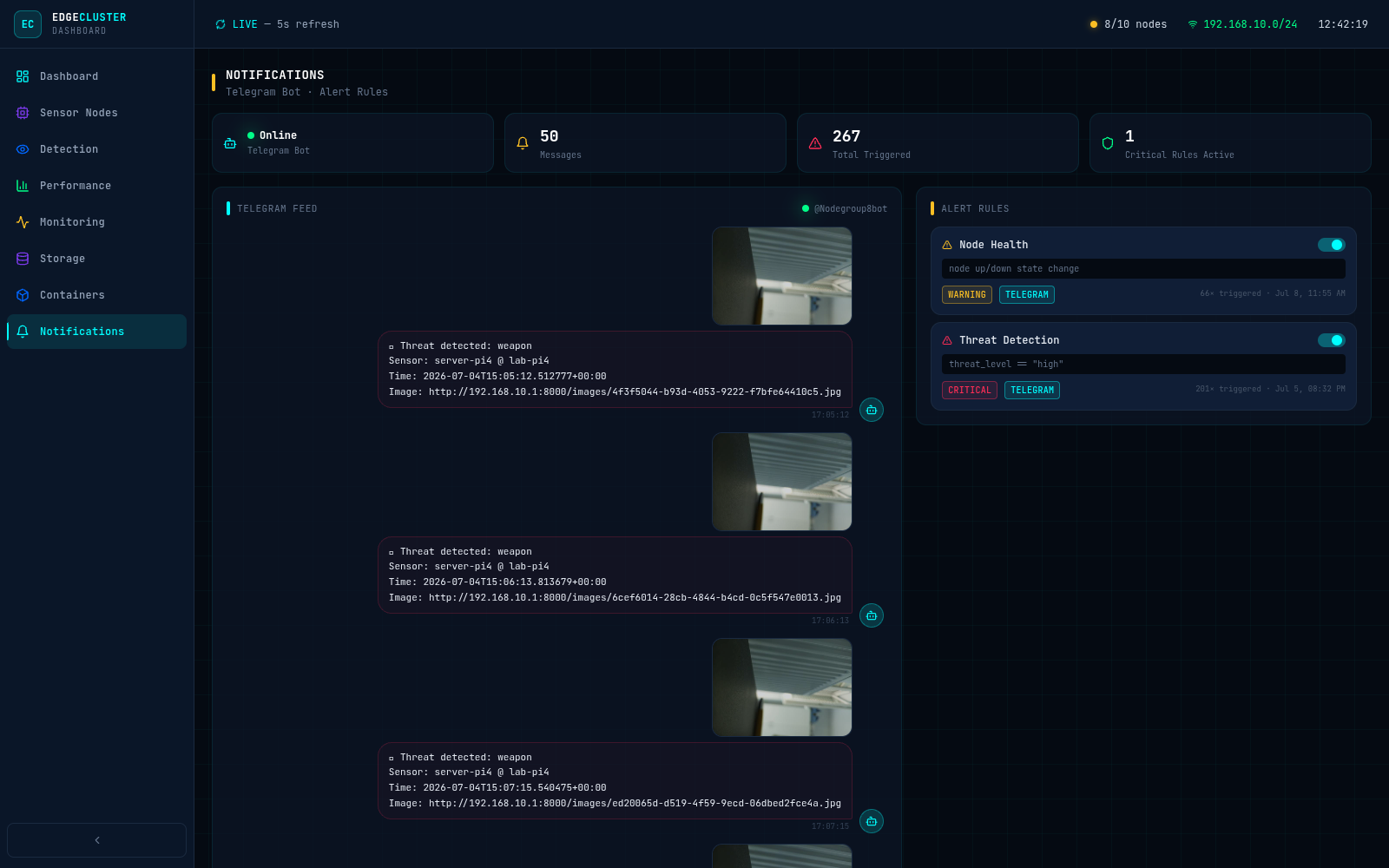

Notifications page showing real alerts and toggleable rules

6. Verification

Both trigger paths were verified against the live cluster:

  • Threat detection: a high-threat detection event sent to POST /events is delivered to the team Telegram chat within seconds, and the corresponding rule's triggered_count increments.
  • Node health: taking a worker node's node_exporter offline produces a "🔴 Node down" alert once Prometheus and the 30-second poll catch the transition; bringing it back online produces a "✅ Node back online" alert.
  • Rule toggle: disabling a rule from the frontend stops that category of alert from firing immediately.
